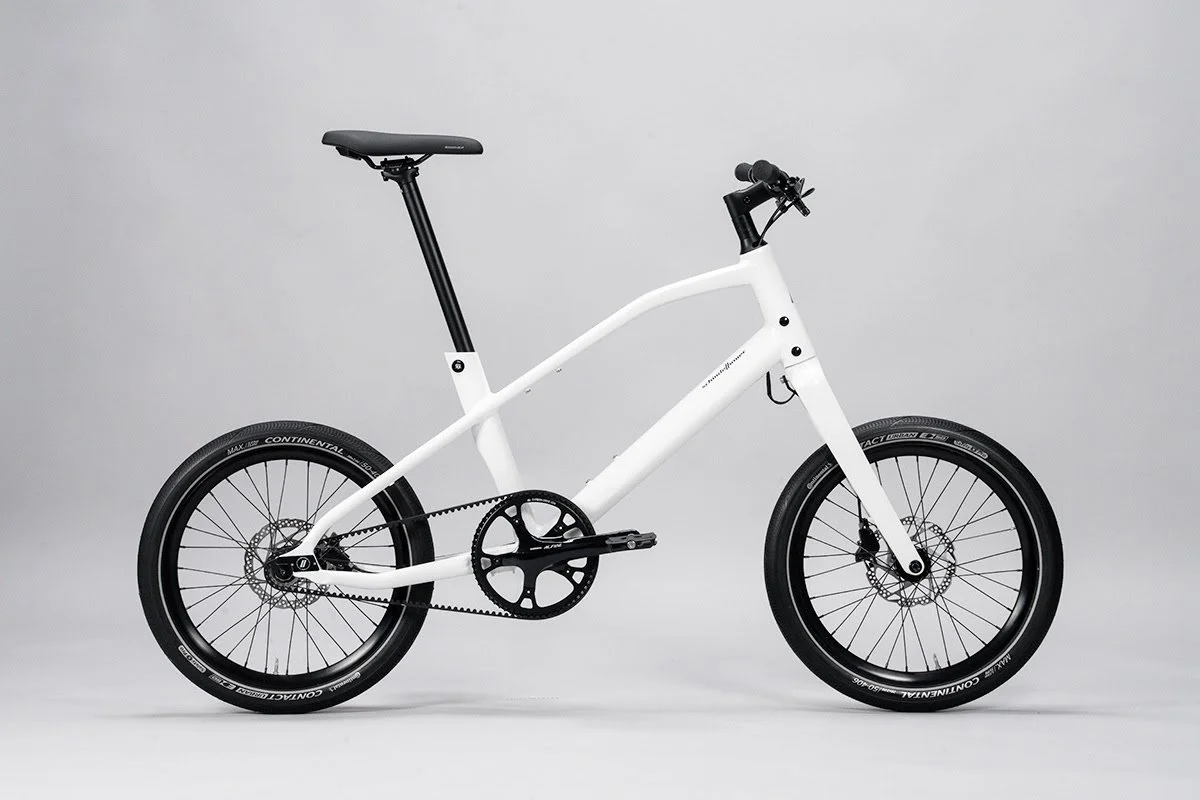

Schindelhauer Neo

from £1,899.00

Neo is available as a single speed, 8-speed Alfine, or electric with 6-speed Pinion gearbox. Each version delivers that light, intuitive feeling that makes every ride feel like play.

Think Schindelhauer THIN bike, Re-imagined. The compact, yet fully functional build offers a range of accessories for all builds, including front and rear mudguards and rack options to carry full sized pannier bags, avoiding heel strike!

The Schindelhauer NEO is compact, yet designed to move through the city with ease and still benefit from a “ regular bike “ bike feel. As always, a premium finish in components is offered and lightskin LED's

Mudguards + £59
Front Rack + £169
Rear Rack + £70

Colours

Ssp - Edelweiss - SOLD OUT - MAY 2027.
Classic - Deep Purple | Titanium Grey - LESS THAN 9 UNITS
Pinion 6 speed X30 Mahle - Alu Pure - GOOD STOCK.

All Schindelhauer bikes are also avaialble to purchase through the cycle to work scheme.

Neo is available as a single speed, 8-speed Alfine, or electric with 6-speed Pinion gearbox. Each version delivers that light, intuitive feeling that makes every ride feel like play.

Think Schindelhauer THIN bike, Re-imagined. The compact, yet fully functional build offers a range of accessories for all builds, including front and rear mudguards and rack options to carry full sized pannier bags, avoiding heel strike!

The Schindelhauer NEO is compact, yet designed to move through the city with ease and still benefit from a “ regular bike “ bike feel. As always, a premium finish in components is offered and lightskin LED's

Mudguards + £59
Front Rack + £169
Rear Rack + £70

Colours

Ssp - Edelweiss - SOLD OUT - MAY 2027.
Classic - Deep Purple | Titanium Grey - LESS THAN 9 UNITS
Pinion 6 speed X30 Mahle - Alu Pure - GOOD STOCK.

All Schindelhauer bikes are also avaialble to purchase through the cycle to work scheme.

Gears:

8 speed Alfine

6 Speed Pinion E

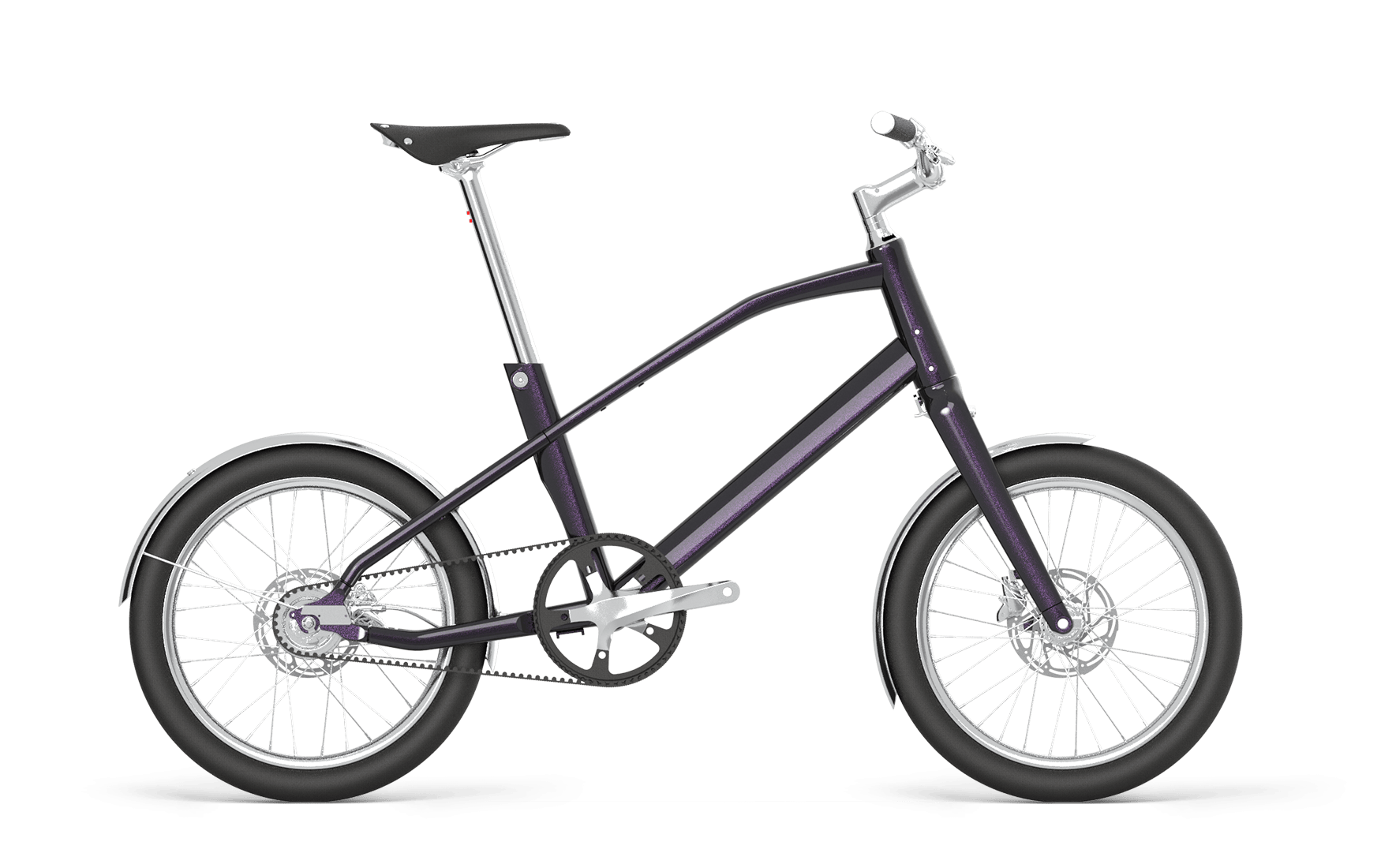

Neo Classic is built on the Schindelhauer contemporary feel. Polished Mudguards and components with a classic and refined feel.

Coupled with integrated Dynamo Lighting and Hydraulic disc Brakes with an Alfine 8 speed internal Hub Gear.

Frameset

Frame

Aluminium (AL6061-T6), forged dropouts with slider belt tensioning system and Schindelhauer – belt port, points for frame mounted front rack, smooth welded, integrated seatclamp, internal cable routing

Fork

Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes

Headset

Acros - ICR 1,5''

Drivetrain

Power transmission

Gates Belt Drive CDC, front 63T, rear 19T, belt 120T

Gear shift

Bottom bracket

BSA, Shimano – Alfine Hollowtech II

Crank set

Shimano – Alfine Hollowtech II

Braking system

Brakes

Shimano - Alfine S7000 disc brake (hydraulic)

Size

160mm

Wheels

Shutter Precision – PL-6 hub dynamo, Schindelhauer Singlespeed rear hub disc, Kinlin TL23 rims, Sapim – Race spokes, 3-times crossed laced

Tires

Continental - Contact Urban, 50-406, with reflex stripes

Cockpit

Stem

Satori – Stealth, aluminium

Handlebar

Schindelhauer Riser (12mm rise)

Grips

Schindelhauer (bolt-on)

Lighting system

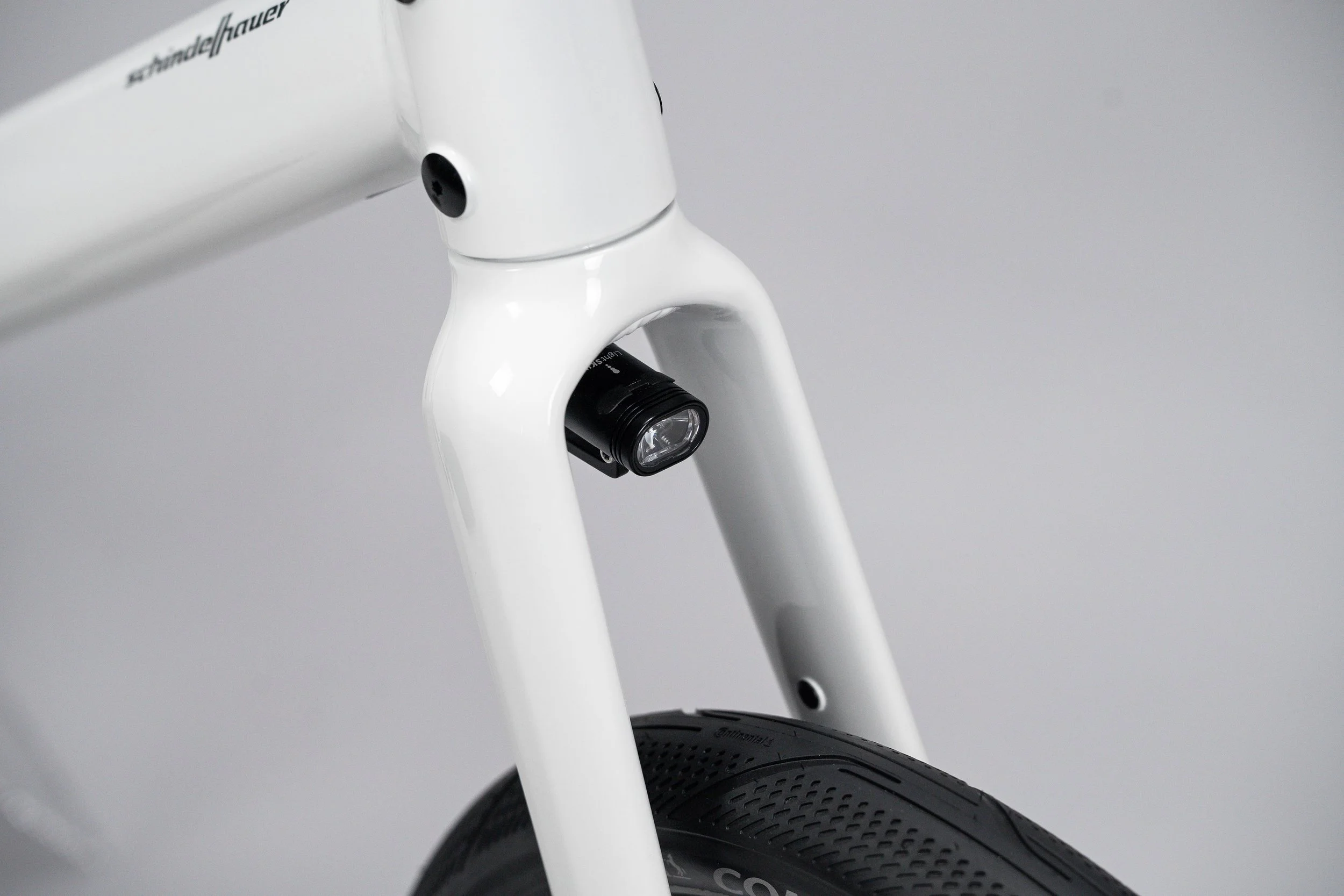

Front light

LightSKIN U2

Rear light

LightSKIN Seatpost SF with integrated rear light and COB light stripe

Dynamo system

Shutter Precision

Weight

9.8 kg

Maximum system weight

125 kg

Accessories

Front basket

Optional

Rear pannier rack

Optional

Mudguards

Optional

Additional features

Kickstand

Optional, mounting possible

Lock holster

Mounting possible

Frame lock

Bottle cage or lock can be mounted.

NEO

Frameset

Frame

Fork

Hydroforming aluminium fork (tapered), 15 mm through-axle, for post mount disc brakes

Headset

Acros - ICR 1,5''

Drivetrain

Power transmission

Gates Belt Drive CDC, front 60T, rear 22T, belt 120T

Gear shift

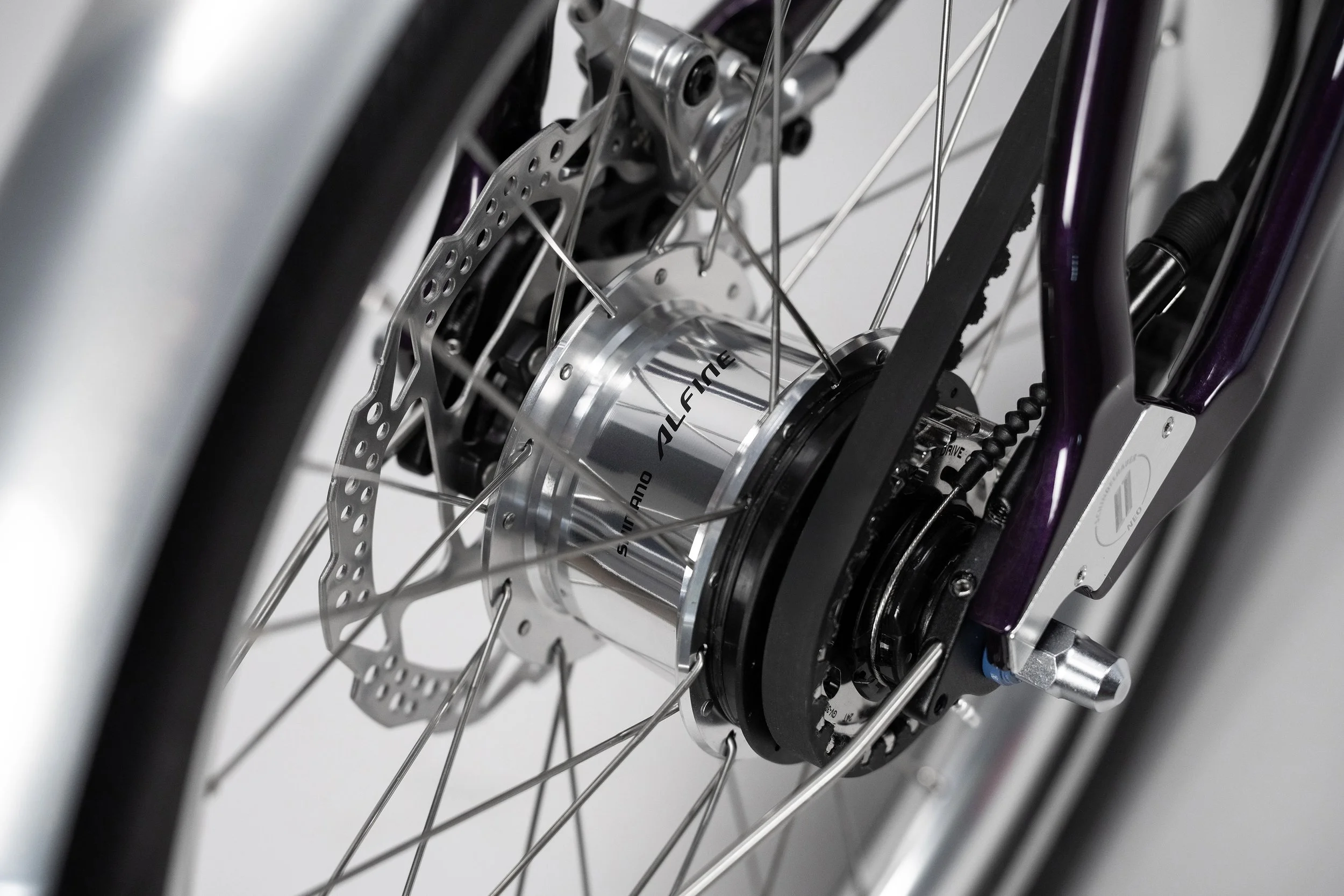

Shimano – Alfine 8-speed internal gear hub

Bottom bracket

BSA, Shimano – Alfine Hollowtech II

Crank set

Shimano – Alfine Hollowtech II

Braking system

Brakes

Shimano - Alfine S7000 disc brake (hydraulic)

Size

160mm

Wheels

Shutter Precision – PL-6 hub dynamo, Shimano – Alfine internal gear hub 8-speed, Kinlin TL23 rims, Sapim – Race spokes, 3-times and 2-times crossed laced

Tires

Continental - Contact Urban, 50-406, with reflex stripes

Cockpit

Stem

Satori – Stealth, aluminium

Handlebar

Schindelhauer Riser (70mm rise)

Grips

Schindelhauer (bolt-on)

Lighting system

Front light

LightSKIN U2

Rear light

LightSKIN Seatpost SF with integrated rear light and COB light stripe

Dynamo system

Shutter Precision

Weight

12.4 kg

Maximum system weight

125 kg

Accessories

Front basket

Optional

Rear pannier rack

Optional

Mudguards

included, Curana – DLite

Additional features

Kickstand

Optional, mounting possible

Lock holster

Mounting possible

Frame lock

Bottle cage or lock can be mounted.

CLASSIC

Frameset

Frame

Aluminium (AL6061-T6), forged PINION bracket, forged dropouts with slider belt tensioning system and Schindelhauer – belt port, points for frame mounted front rack, smooth welded, integrated seatclamp, internal cable routing
